by avinash3333bhat
Wed Jul 22, 2015 10:39 am
Forum: Display Devices
Topic: DLP projector options
Replies: 4
Views: 7763

Re: DLP projector options

Thanks a lot for the reply :)
by avinash3333bhat
Tue Jul 21, 2015 2:07 pm
Forum: Display Devices
Topic: DLP projector options
Replies: 4
Views: 7763

Re: DLP projector options

Thank you for the reply.
I will stick to 100micron X-Y resolution.
I believe Z -resolution will depend on steps_mm. So I can go upto 30 micron for Nema 17 with 1/16th stepping. Will there be any issue with mechanical strength when the resolutions in different axes are not matching?
by avinash3333bhat
Mon Jul 20, 2015 1:04 pm
Forum: Display Devices
Topic: DLP projector options
Replies: 4
Views: 7763

DLP projector options

Hi All, I have narrowed down the search for dlp projector to these three: 1. Infocus in220i http://www.infocus.com/projectors/office-classroom/IN220-Series/IN220 2. Dell 2300MP http://www.projectorcentral.com/Dell-2300MP.htm 3. Mitsubishi xd110U http://www.projectorcentral.com/Mitsubishi-XD110U.htm ...
by avinash3333bhat
Wed Jul 01, 2015 2:19 pm
Forum: Hardware
Topic: Lead nut mounting
Replies: 10
Views: 12984

Re: Lead nut mounting

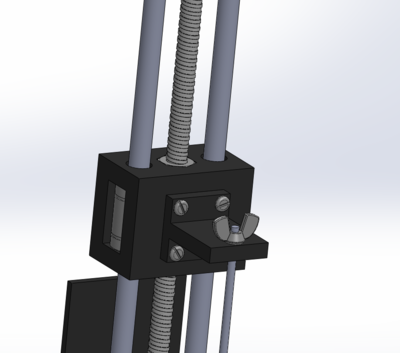

I have created a linear guideway as shown
Section view of the mount:


There will be an interference between the linear bearing and the mount (around 0.5mm) to hold it in place... will it be enough?
This part will be printed in ABS plastic.
by avinash3333bhat
Wed Jul 01, 2015 10:30 am
Forum: Hardware
Topic: Lead nut mounting
Replies: 10
Views: 12984

Re: Lead nut mounting

Also how is this design for experimenting in top down SLA?
Capture 3.PNG
by avinash3333bhat
Wed Jul 01, 2015 10:28 am
Forum: Hardware
Topic: Lead nut mounting
Replies: 10
Views: 12984

Re: Lead nut mounting

Something like this?

The nut with the spring will be facing upwards...
by avinash3333bhat
Tue Jun 30, 2015 1:53 pm
Forum: Hardware
Topic: Lead nut mounting
Replies: 10
Views: 12984

Re: Lead nut mounting

Thanks for the reply.. I've been doing some reading and have designed a new one to compensate for backlash... I have added another spring in the bottom just to ensure tight gripping... This should work i believe? let me know...
by avinash3333bhat
Tue Jun 30, 2015 10:29 am
Forum: Hardware
Topic: Lead nut mounting
Replies: 10
Views: 12984

Lead nut mounting

Hey guys,

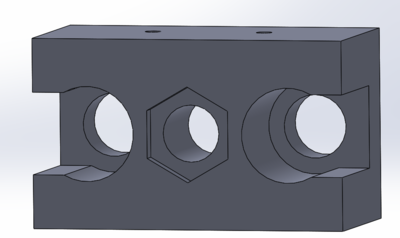

Please check out this lead nut block for top down sla printer.. It is used for M8 lead screw.. This part can be 3d printed.
Will this work? or any design changes required...It is used for Top down sla printer...
by avinash3333bhat
Mon Jun 22, 2015 2:16 pm
Forum: General
Topic: CLIP technology
Replies: 1
Views: 6815

CLIP technology

Hi.. Just read about CLIP technology used in Carbon3d. But I have some doubts: 1. Is it possible to apply CLIP technology using some cheap oxygen permeable membranes? 2. How do we provide continuous supply of oxygen to bring out dead zone? 3. In the end, even if it is possible to get the stuffs requ...
by avinash3333bhat
Mon Jun 22, 2015 2:12 pm
Forum: General
Topic: DLP calculation files
Replies: 1
Views: 6511

DLP calculation files

Hi guys.. are there any particular set of calculations that compare cure time with photon flux, viscosity of resin etc etc... Or any other forum posts or websites? I would like to quantify these variables before buying the right apparatus.
